Description

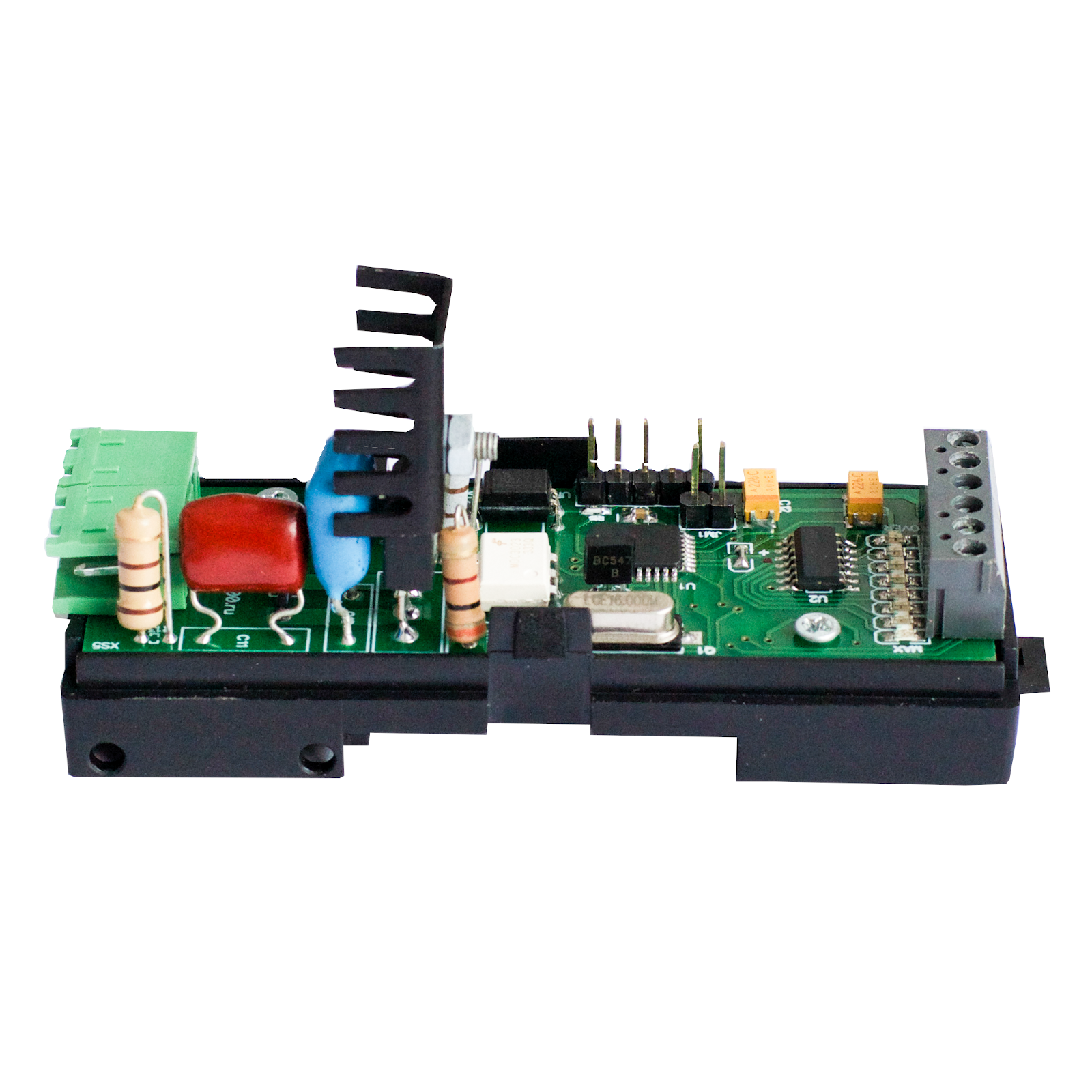

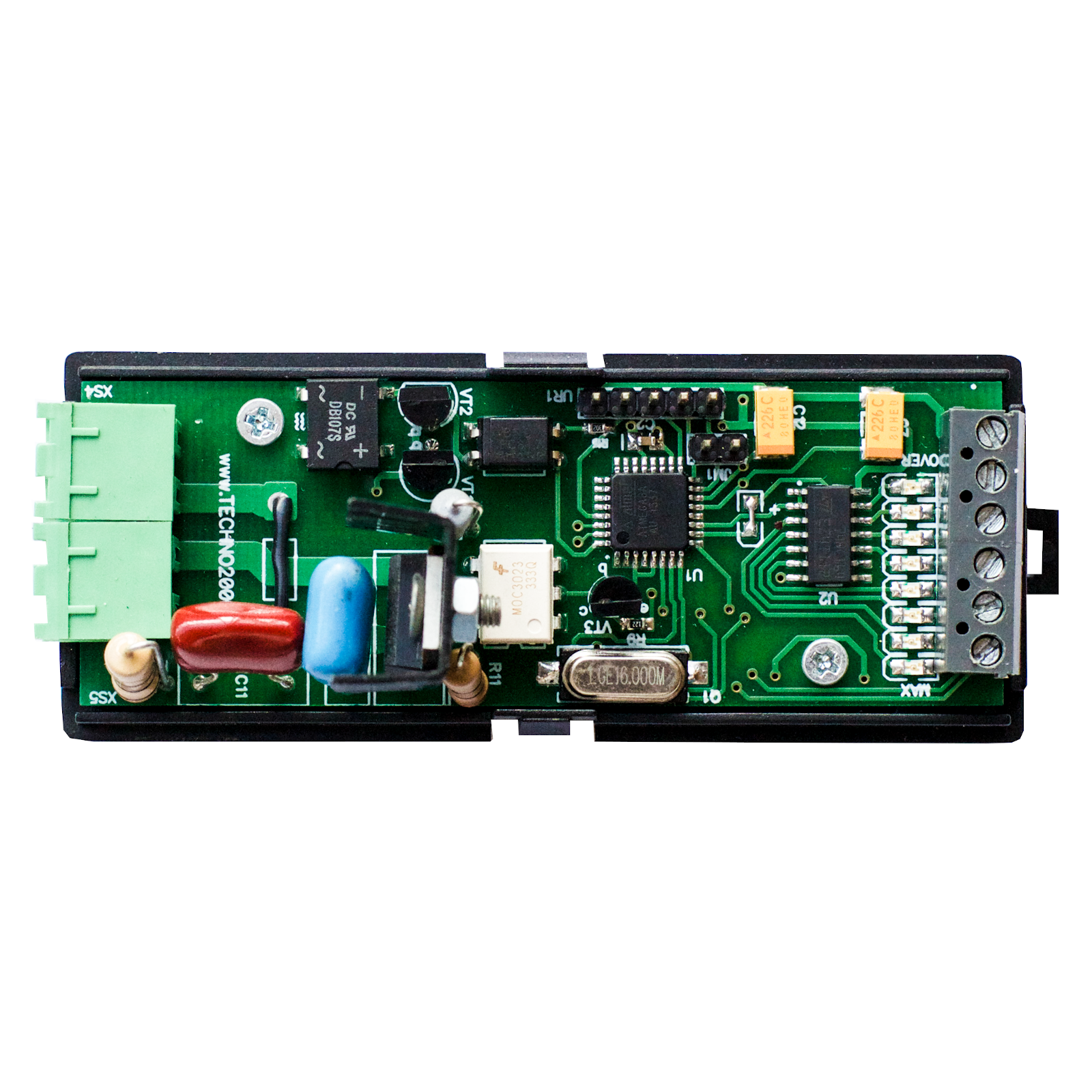

The DV-DM1D-F dimmer is an addressable electronic controller used as part of the DIVISION automation system for smooth dimming of incandescent lamps. Structurally, the controller is made in a housing for mounting on a DIN rail. Connects to the DV-HEAD OMEGA central controller via the RS485 interface. The maximum total power of the lamps included in one channel should not exceed 200 W.
The dimming channel brightness is controlled from the central DV-HEAD OMEGA controller via RS485, as well as from a local button without fixation connected to the low-current input of the dimmer. Alternately pressing the button causes the DV-DM1D-F channel to turn on and off smoothly, holding the button allows you to regulate the brightness of the lighting group connected to the DV-DM1D-F dimmer. The DV-DM1D-F dimmer can work offline.
To test and assign an address to the DV-DM1D-F controller in the DIVISION system, connect it to a personal computer using a USB/RS485 interface converter and run the DIVISION CONTROLLERS program.
You can download the dimmer control protocol from the link
Main technical characteristics:
– 1 channel;
– 200 W;
– 220 V ±10%;
– regulation of the level of illumination from 0 to 100%;
– RS485;
– auto-detection in the DIVISION automation system;
– indication of the operating mode on the board;
– Software for testing DIVISION CONTROLLERS;
– 2-DIN dimensions.
4623720660000
Typical schemes for switching the controller on are given in the Operation Manual and in the Constructor section
