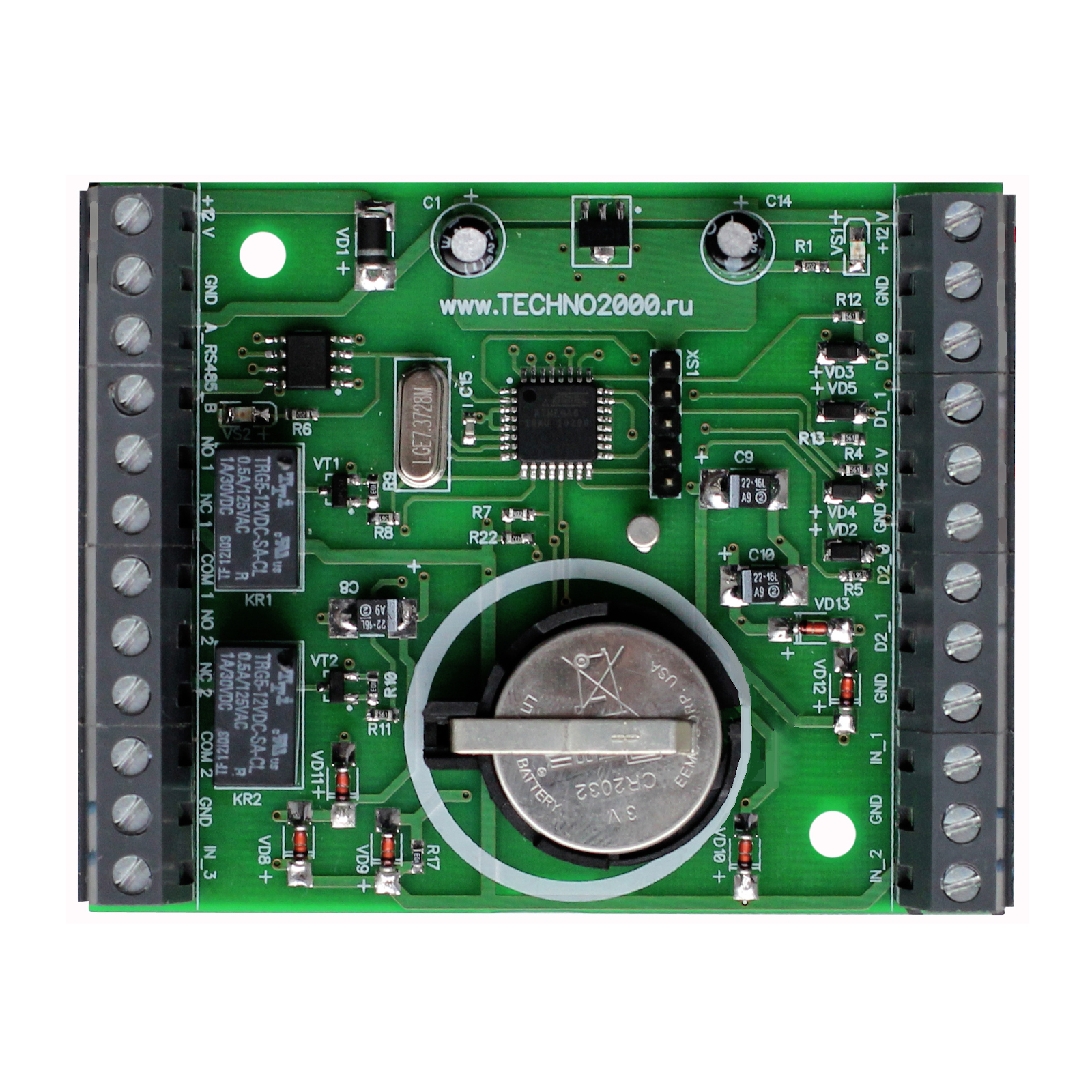

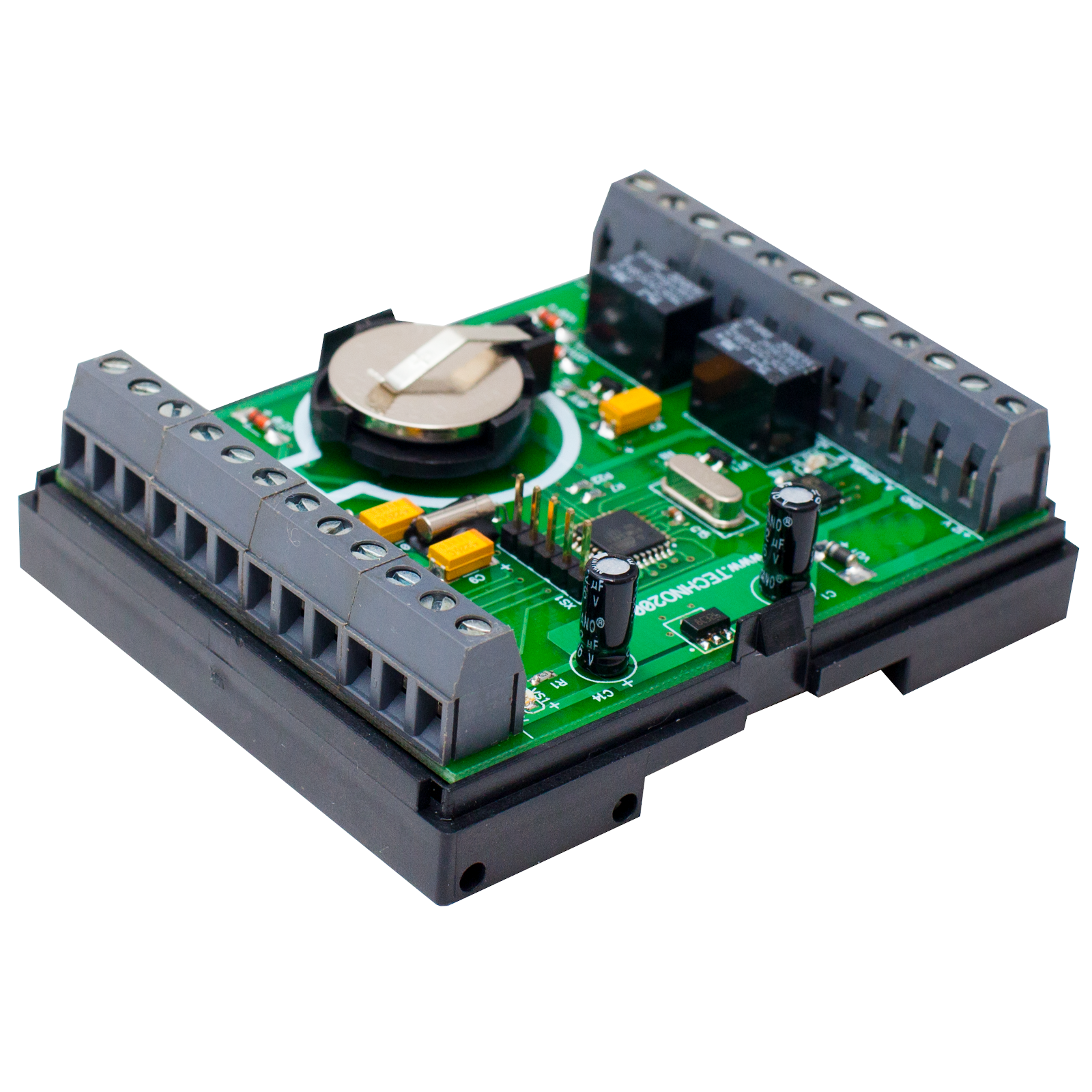

DV-PROXI2 AC-D is an electronic address controller with non-volatile memory for 1000 cards and the ability to work autonomously in access control and management systems (ACS). DV-PROXI2 AC-D automatically terminates an expired card.
The DV-PROXI2 AC-D controller is connected to the DV-HEAD OMEGA central controller via the RS485 interface. To work as a part of the DIVISION AC time attendance system, the DV-PROXI2 AC-D controller is connected to the operator’s personal computer using a USB/RS485 interface converter. Supports the ability to work offline.
To test, assign an address and write cards to the memory of the DV-PROXI2 AC-D controller, connect it to a personal computer using a USB/RS485 interface converter and run the DIVISION CONTROLLERS program.
Main technical characteristics:
– number of controllers on one RS485 port – no more than 32;
– reader type MATRIX-II EH;
– WIGAND 26 protocol;
– Em-Marine card type;
– number of readers – 2;
– 3 discrete inputs;
– 2 relay outputs.
Manufacturer : GC “ТЕCHNО”
Typical schemes for switching on the controller are given in the Operation Manual and in the Constructor section
